6000W RS232 Hybrid Solar Inverter 24VDC Grid Tie Hybrid Inverter

Product Categories
Shenzhen Consnant Technology Co., Ltd.
Contact Now

6000W RS232 Hybrid Solar Inverter 24VDC Grid Tie Hybrid Inverter

Brand Name : CONSNANT

Model Number : MPS-V PLUS

Certification : CE

Place of Origin : China

MOQ : 10 pieces

Payment Terms : T/T

Supply Ability : 500 pieces per month

Delivery Time : 5-8 working days

Packaging Details : color box

Output type : Single

Type : DC/AC Inverters

Output frequency : 50/60HZ

Input voltage : 24VDC/48VDC

Output voltage : 220VAC/230VAC

Warranty : one year

Display : LCD

Color : Sky blue

Output waveform : Pure Sine Wave Output,Prue Sine Wave

Product name : Solar Inverter

Efficiency : 97%

Application : solar system compatible to genetator

Contact Now

Special design for home application include computer

Features:

1. Pure sine wave solar inverter

2. Wifi & GPRS available for IOS and android

3. Built-in 100A MPPT solar charger

4. Built-in anti-dust kit for harsh environment

5. Output power factor 1.0

6. Inverter running without battery

7. High PV input voltage range (120 ~ 500VDC)

8. Smart battery charge design to optimized battery life

Model MPS-V 3500W-PLUS MPS-V 5500W-PLUS
Rated Power 3500VA/3500W 5500VA/5500W
INPUT
Voltage 230VAC
Selectable Voltage Range

170-280VAC (for personal computers)

90-280VAC (for home appliances)
Frequency Range 50Hz/60Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Battery Mode) 230VAC ＋－ 5%
Surge power 7000VA 11000VA
Efficiency (peak) PV to INV 97%
Efficiency (Peak) BAT to INV 94%
Transfer time

10 ms (for personal computers)

20 ms (for home appliances)
Wave form Pure sine wave
BATTERY & AC CHARGER
Battery Voltage 24VDC 48VDC
Floating Charge Voltage 27VDC 54VDC
Overcharge Protection 33VDC 63VDC
Maximum Charge Current 80A 80A
SOLAR CHARGER
MPPT Range@ Operating Voltage 120-450VDC
MAX. PV Array Power 5000W 6000W
Maximum PV Array Open Circuit Voltage 500VDC
Maximum Charging Current 100A
Maximum Efficiency 98%
PHYSICAL
Dimension (D*W*H mm) 440*300*100
Net Weight (Kgs) 11 12
Communication Interface

USB/RS232 (standard)

GPRS/WIFI (Optional)
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature 0 ℃ to 55 ℃
Storage Temperature - 15 ℃ to 60 ℃

Product Tags:

RS232 Hybrid Solar Inverter



6000W Hybrid Solar Inverter



24VDC Grid Tie Hybrid Inverter


Wholesale 6000W RS232 Hybrid Solar Inverter 24VDC Grid Tie Hybrid Inverter from china suppliers

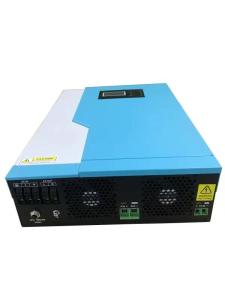

6000W RS232 Hybrid Solar Inverter 24VDC Grid Tie Hybrid Inverter Images
